Landoll Traveling Tail Trailer Model 930D
LAND930D
Model 930 D
- 35 Ton
- 70,000 lbs
Description
930D - Maximize Payload and Profitability

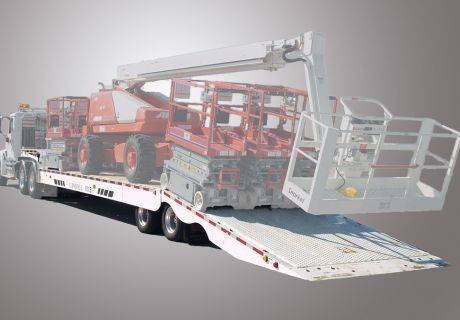

The Landoll 930D Traveling Tail is part of the 900 D Series trailers. The tail is capable of lifting 24,000# up to 53" dock height. Maximize your loads by utilizing the entire deck and maximize your payload by having the undercarriage five feet behind the main hinge. The longer wheelbase gives you proper weight distribution between tractor and trailer and fully supports the tail.

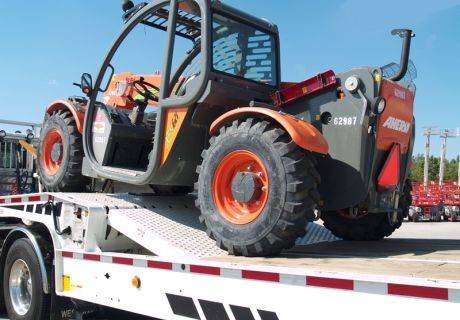

The traveling tail concept allows for stable dock loading and increases your payload by having a longer wheel base
Features
FRAME and FEATURES:
- *Capacity: 35 Ton (70,000 lbs.)
- Deck Rating: 50,000 lbs. in 10'
- Estimated Base Weight: 16,300 lbs. (48') +/-3%
- Main Frame: Fabricated 80,000 PSI Yield 4-Beam Design
- Crossmembers: 4" Junior I-Beam and 3" Junior I-Beam on 8" Centers
- Pin Setting: 18"
- Swing Clearance: 84"
- Hitch: Fifth-Wheel Kingpin
- Deck Width: 102"
- Loaded Deck Height: 38"
- Loaded Ground Clearance: 20"
- Decking: 1-3/8" Nominal Apitong (Lower Deck)
- Slope Drop: 90°
- Load Angle: 11° with 15' Tail
- Tail Lifting Capacity: 24,000 lb.
- Features: Flat Approach Plate, Apitong Wood Covered Tail
- Tool Box: Twin Lockable Upper Deck Mounted with Lockable Door (7"H x 34"W x 29"D)
- Tie Downs: Double Key Hole Chain Slot / Gotchas on 16" Centers / (6) Double Keyhole Chain Slots on Tail / (2) D-Rings Lower Slope at Deck
- Parking Stands: Jost Two Speed Landing Gear
SUSPENSION and UNDERCARRIAGE:
- Suspension: Neway Air Ride RLU228, 22,500 lb. Capacity with Manual Dump Valve
- Undercarriage: Centralized Grease System
- Axles: (2) 25,000 lb. Axles, Dual Tire, Oil Bath Bearings, Outboard Brake Drum, Automatic Slack Adjusters
- Brakes: 12.25x7.5 Full Air / Spring Brakes ABS, 4S2M
- Tires: 235/75R 17.5 Double Coin Tires
- Rims: 17.5x6.75 Tubeless
- Wheels: Hub Pilot / Steel Outboard Brake Drums
- Oil Seal Hubs: Internal Mated Assembly
HYDRAULICS:
- Hydraulic Hook Up: Quick Couplers / 2,500 PSI - 20 GPM at Controls, 50 GPM Max

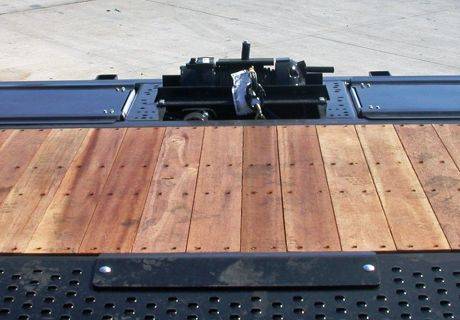

- Hydraulic Winch: Upper Deck 12,000 lb. Worm Gear with 85' of 1/2" Cable with Wear Plate

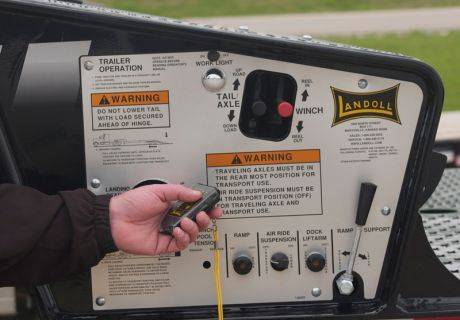

- Hydraulic Valve Body: Rexroth
ELECTRICAL:
- Air / Electrical: 7 Way Receptacle
- Lights: Grote Clear Lens LED with Chrome Bezel (10-Year Warranty)
- Wiring Harness: Grote “Xtreme” Wiring Harness (7-Year Warranty)
FINISH and COLOR:
- Finish: Steel Grit Shot Blast to Bright Metal
- Color: Zinc Rich Primer
- Powder Coat Color: TGIC Polyester Powder Coat, White / Black / Yellow / Blue / Red / Green / Sapphire Blue / Dark Gray
- Decals: Hi-Visibility Reflective Package
