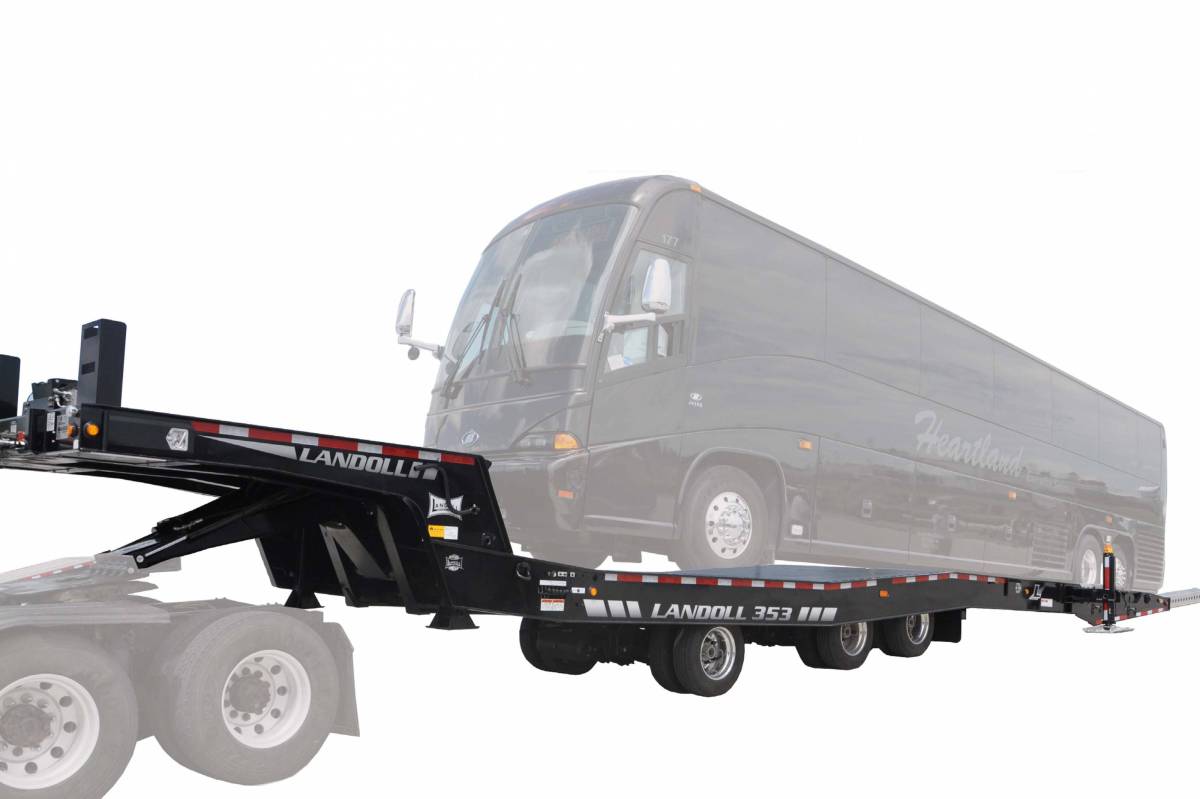

Landoll Bus Hauler Trailer Model 353

LAND353
A Special Trailer For A Difficult Job

Description

A Special Trailer For A Difficult Job

Landoll, the leader in the traveling axle industry, has developed a double drop trailer that will haul even the toughest jobs like metro buses and Class A or B motor coaches. Landoll continues to bring you the most innovative designs, features and benefits that make your job easier, safer, and more profitable.

The Model 353 double drop has a full width front well that allows for a deck height of just 26”. The rear tandem wheel well pockets are equipped with Landoll’s “Mechanical Wheel Well Lifter”. You have all trailer hydraulic functions at your fingertips with the standard wireless remote controls.

Landoll brings this new design down to 5° load angle. Buses and RVs require the lowest possible load angle and the 353 gets you there. The Model 353, a 35 ton three axle trailer, is designed to handle even the heaviest of motor coaches. The three axle undercarriage has air ride suspension, 25,000 lb. axles and most importantly a 132” axle spread. Every bus is different and you can operate under legal weight limits or maximize the axle group when needed under permit. It just gets the job done.

Features

Main Frame:

  • Fabricated 80,000 and 100,000 PSI Yield Four Beam Frame
  • Capacity - 50,000 lbs in 10'

Kingpin Settings

  • 17.5" Setback, 75.5" Sing Clearance
  • 2" Fifth-Wheel Kingpin Hitch

Winch

  • 12,000 lb. Worm Gear with Spring Tension and 85' of 1/2" Cable
  • 20,000 lb. Worm Gear with Spring Tension and 85' of 1/2" Cable (Optional)
  • 30,000 lb. Planetary with Air Release and 85' of 1/2" Cable (Optional)
  • Dual Slope Rollers (Routes Cable of 6" Off Lower Deck)

Deck and Features

  • 102" Wide
  • Steel Tread Plate
  • 26" Loaded Deck Height (In Dropped Area and Wells)
  • 5 Degrees Load Angle
  • 11" Loaded Ground Clearance
  • Mechanical "Well Lift" System
  • Hydraulic Outrigger with Shide Shift Hydraulic Capability

Accessories

  • (1) pair Aluminum Ramps Multi-Position (96")
  • (1) pair Aluminum Ramps Approach or Slope (60")

Tie Downs/Chain Gotchas

  • Double Keyhole Tie Downs on Approach Plate
  • Double Keyhole Chain Slots with Square Stake
  • Pockets on 32" Centers (Estimated)

Tool Box

  • Twin Upper Deck Lockable Tool Boxes - 6.75" x 27.5" x 31"
  • Twin Lower Deck Lockable Tool Boxes - 8.75" x 24" x 31" - Storage for Outrigger Foot Pads

Suspension/Axles

  • Neway Air Ride RLU228, 22,500 lb. Capacity
  • (3) 25,000 lb. Dual Tire, Oil Bath Bearings
  • Centralized Grease System

Brakes

  • 12.25 x 7.5 Full Air with Spring Brakes (Two Axles) ABS 4S2M
  • Automatic Slack Adjusters

Tires/Wheels

  • 215/75R 17.5 LRH Double Coin
  • 17.5 x 6.75 Tublesss Rims
  • Pressure Guard Tire Inflation System
  • Hub-Pilot / Steel Outboard Brake Drums

Lights/Wiring Harness

  • Grote LED (10-Year Warranty)
  • Grote "Xtreme" Wiring Harness (7-Year Warranty)

Finish/Color

  • Steel Grit Shot Blast to Bright Metal
  • TGIC Polyester Poweder Coat - White, Black, Yellow, Blue, Red, Green



Crossmembers: 4" Jr. I-Beam on 16" Centers
Parking Stands: Jost Two Speed
Hydraulic Hook Up: Hydraulic Quick Couplers / 2,500 PSI - 15 GPM
Hydraulic Remote Controls: Full Manual Controls and Full Function Control by Wireless Remote Control
Weight: -26,140 lbs. (53') +/- 3%
