Heavy Duty Versatility Plus Many Standard Features
The Landoll 855E-HD Construction's versatility originates in its primary standard features. The innovative 4-beam frame features a flat deck with a loaded height of 19 1/2". The 855E-HD Construction is a 3 axle trailer frame with hinge brackets air / electrical for a 4th -axle flip or a Nitrogen Stinger / Spreader Bar, 110,000 lb. capacity with a 12’ concentrated deck rating.
Patented Gooseneck Design - Flexibility
The gooseneck is a Landoll patent that gives the operator the control at his fingertips. Two kingpin settings, with swing clearance of 108" and 90", allow three or four axle tractors to maximize their weight distribution. The 7-position ride height gives needed ground clearance and lowers the deck height to carry extremely high loads. No other gooseneck offers such flexibility as the Landoll 800 Construction Series.
Complete Packages

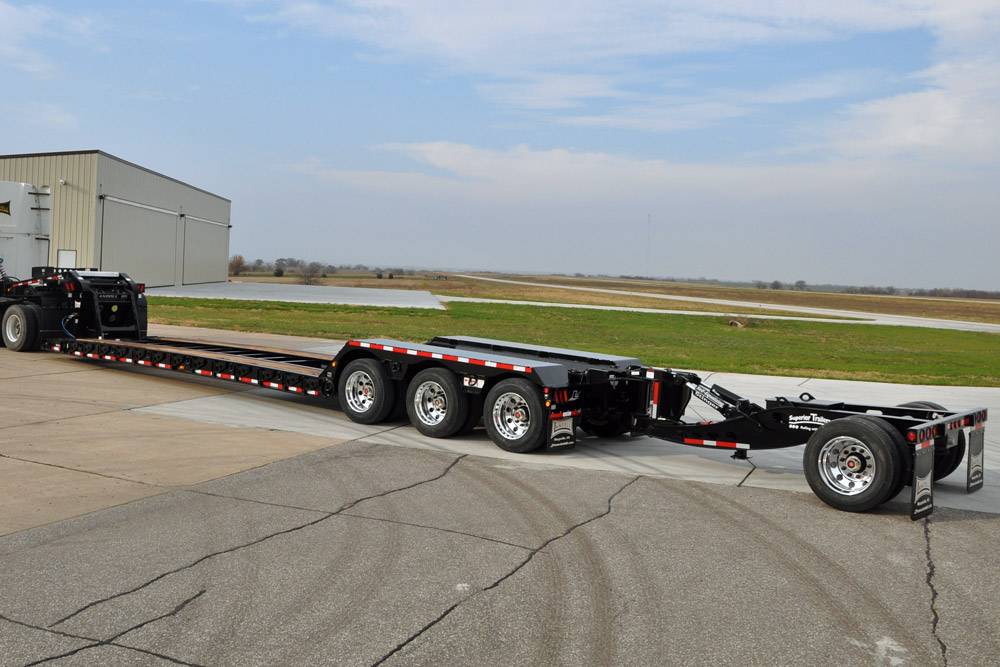

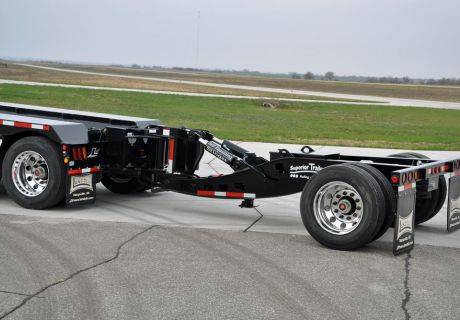

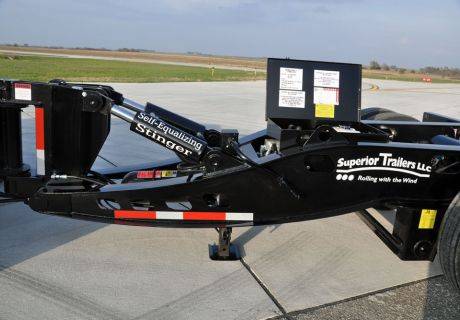

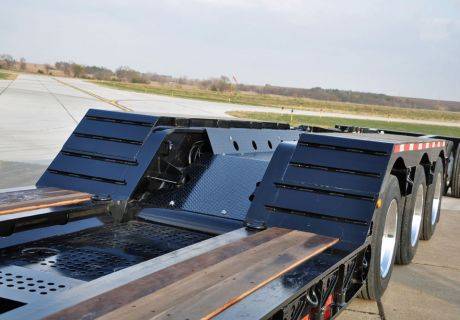

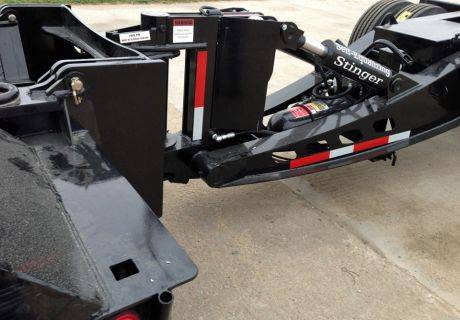

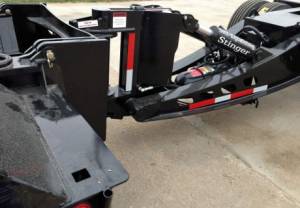

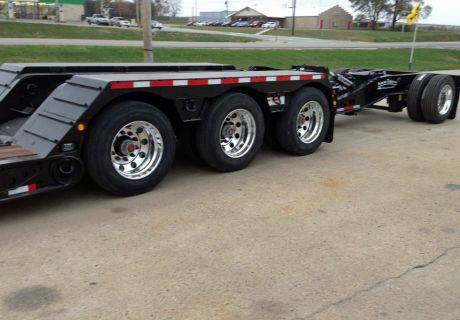

The 855E-HD Construction Series is the complete package. Maximum lower deck length allows you to position your loads and scale legally. For heavy loads, the base trailer comes standard with flip axle brackets and air/electrical couplers. To move a permit load with ease, an optional flip axle for four in a row or the Nitrogen Stinger / Spread bar to establish a 14 foot spread between the rear trailer axle and the stinger axle can be added. The 855E HD Construction gooseneck is standard with the flip extension brackets. The optional 36” flip extension allows for swing clearance of a two axle jeep dolly. The Landoll detachable series is work ready with a flattened front approach, apitong wood in track area, a recessed storage compartment and swing-out overwidth extensions. The front, double outrigger is for added strength at the break over. There are traction bars on the approach and on the front half bolster for added traction.
Main Frame:
Gooseneck, Deck and Accessories
Deck and Features
Suspension/Axles
Tires/Rims
Lights
Finish/Color
Weight: 53' -855C - 25,400 lbs +/- 3% Estimated Weights
Lift Cylinders: Horizontally Mounted
Swing Clearance: Dual Swing, 108" and 90"
Loaded Ground Clearance: 6.5"
Loaded Deck Height: 19.5"
Tie Down/ Chain Gotchas: (24) Total, All Angled D-Rings, 7 Each Side Lower Deck, 1 on End of Each Bolster, 2 at Rear of Lower Deck, 2 at Top of Rear Slope, 2 at Top of Rear Slope, 2 at Rear of Trunnion
Storage Aread: (1) Between Main Frame at Front of Lower Deck (41"W x 24"L x 10"D)
Kingpin Setting: Dual Pins 15" and 33"
Crossmembers: 8" High Tensile I-Beams on 24" Centers
Hydraulic Hook Up: Hydaulic Quick couplers 2,500 PSI - 20 GPM at COntrols, 50 GPM Max
Brakes: 16.5x7 Full Air with Spring Brakes on Axles ABS, 4S2M
