Auto Crane Hydraulic Crane (HC-9 Series)

SKU: AUTC:HC-9 Series

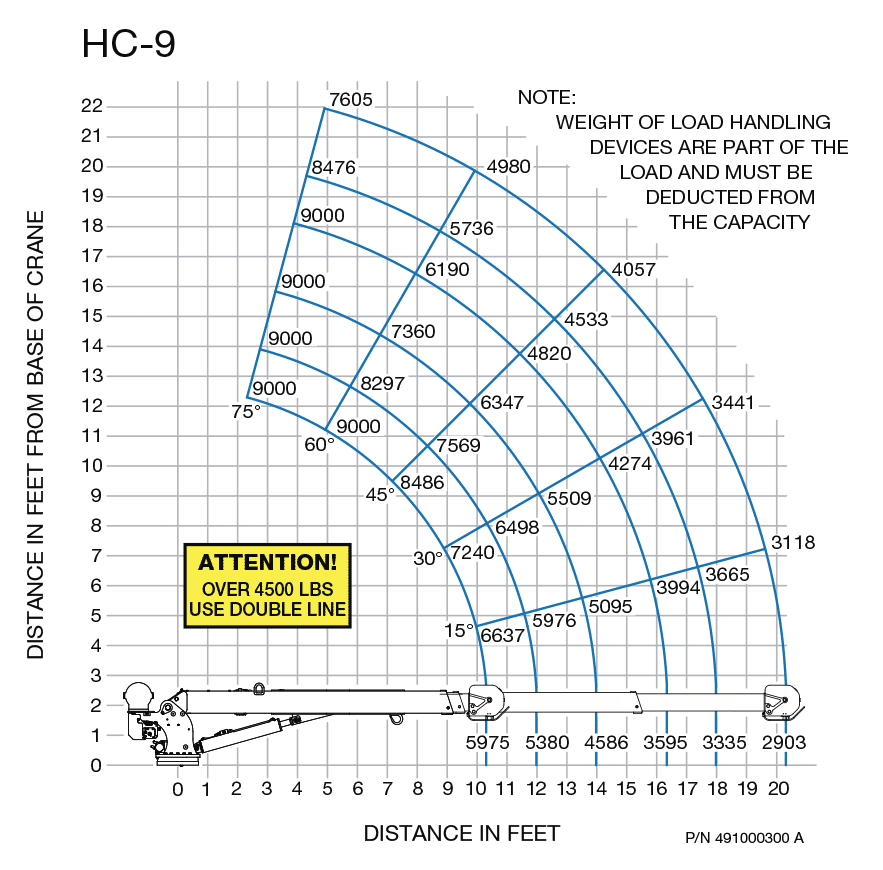

Hydraulic Crane with a 59,000 ft-lbs (8.15 tM) moment rating and a maximum lifting capacity of 9,000 lbs. (4,082 kg) at 5' 0" (1.52 m)

Please Call for Availability

800.877.0338

Description

Hydraulic Crane with a 59,000 ft-lbs (8.15 tM) moment rating and a maximum lifting capacity of 9,000 lbs. (4,082 kg) at 5' 0" (1.52 m)

Automatic overload protection system Keeps people, equipment, and loads safer
Full, non-continuous power rotation -370 Degrees movement for maximum versatility in lifting
Capable of lifting at 100% in all positions on Titan crane bodies with outriggers Maximized capacity for lifting
-14 Degrees to +75 Degrees boom elevation Greater work area capability with maximum range of working angle limits
Small sheave Fits into tighter spaces
95 ft (28.96 m) of 3/8" (9.52 mm) EIPS IWRC Galvanized Wire Rope
Stowed Boom Length: 13' 4" (3.96 m)
Extended Boom Length: Width: 1' 11¼" (.59 m)
Width: 1' 11¼" (.59 m)
Height: 2' 8¾" (.83 m)
Base Plate Dimensions: 16.75" x 16.75" (.43 m x .43 m)
Single Line Speed: 60 ft/min (18.3 m/min)
OSHA 1910.180 ANSI B30.5

Limited two-year factory warranty
