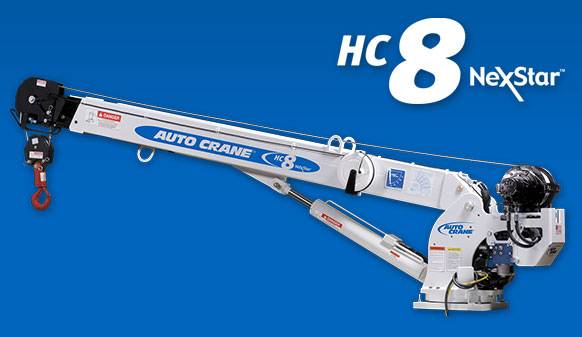

Auto Crane Hydraulic Crane (HC-8 Series: NexStar Models)

SKU: HYDHC-8 Series: NexStar Models

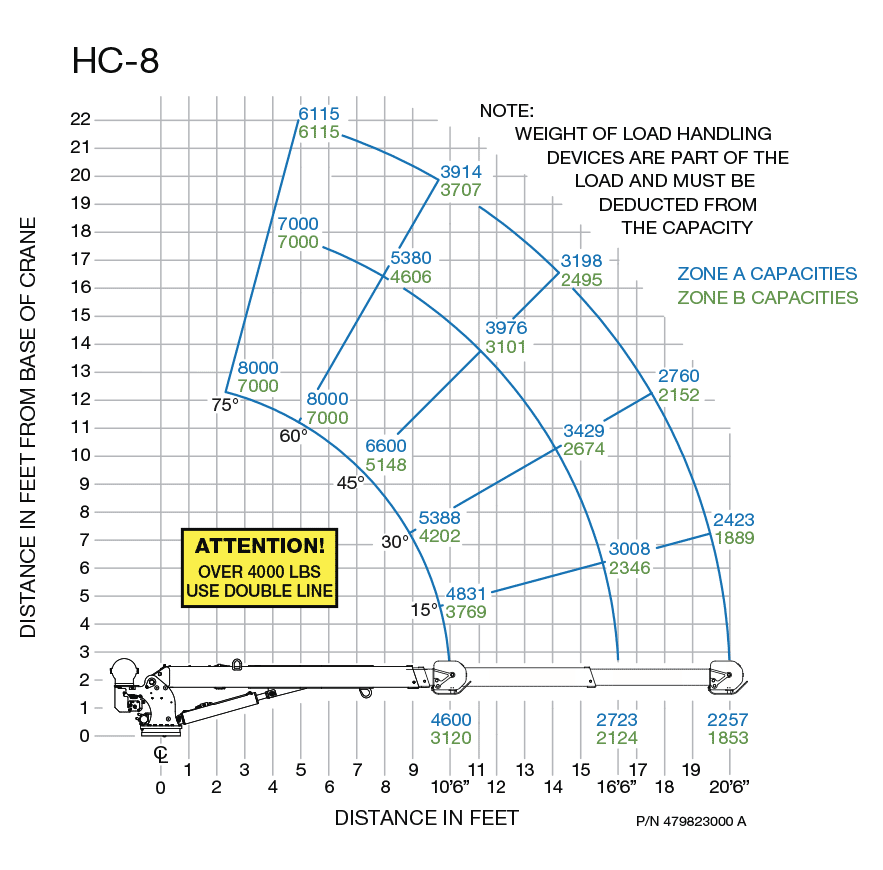

Hydraulic Crane with a 49,000 ft lb (6.77 tM) moment rating and a maximum lifting capacity of 8,000 lb (3,628 kg) at 5' 5" (1.65 m)

Please Call for Availability

800.877.0338

Description

Hydraulic Crane with a 49,000 ft lb (6.77 tM) moment rating and a maximum lifting capacity of 8,000 lb (3,628 kg) at 5' 5" (1.65 m)

Proportional control of multiple functions simultaneously and independently Adjust any function anytime to a different speed, for total control over the load
Level sensors monitor the angle of the truck and crane with the NexStar FM remote system on a Titan crane body Prevents operation in unsafe, unlevel conditions
Automatic stop at 100% load capacity Keeps people, equipment, and loads safer
Adjustable speed settings; from 25% to 100% Enables fine tuning of speeds for total control over the load
The NexStar FM remote system receiver displays load-monitoring and diagnostic readouts in plain English No codes to look-up or memorize; operator views precise percentage load capacity
NexStar available with either tethered or fully-featured wireless remote options Your choice for preferred control method
Transmitter is IP66 rated and CE certified Sealed and water protected for maximum durability
95 ft (28.96 m) of 3/8" (9.52 mm) aircraft quality cable
Stowed Boom Length: 13' 4" (3.96 m)
Extended Boom Length: Width: 1' 11¼" (.59 m)
Width: 1' 11¼" (.59 m)
Height: 2' 8¾" (.83 m)
Base Plate Dimensions: 16.75" x 16.75" (.43 m x .43 m)
Single Line Speed: 55 ft/min (16.8 m/min)
OSHA 1910.180 ANSI B30.5

Limited two-year factory warranty
