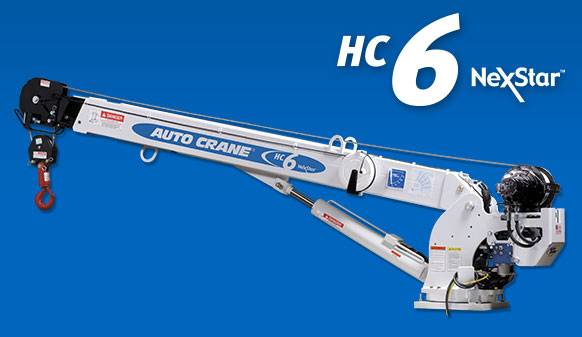

Auto Crane Hydraulic Crane (HC-6 Series: NexStar Models)

SKU: HYDHC-6 Series: NexStar Models

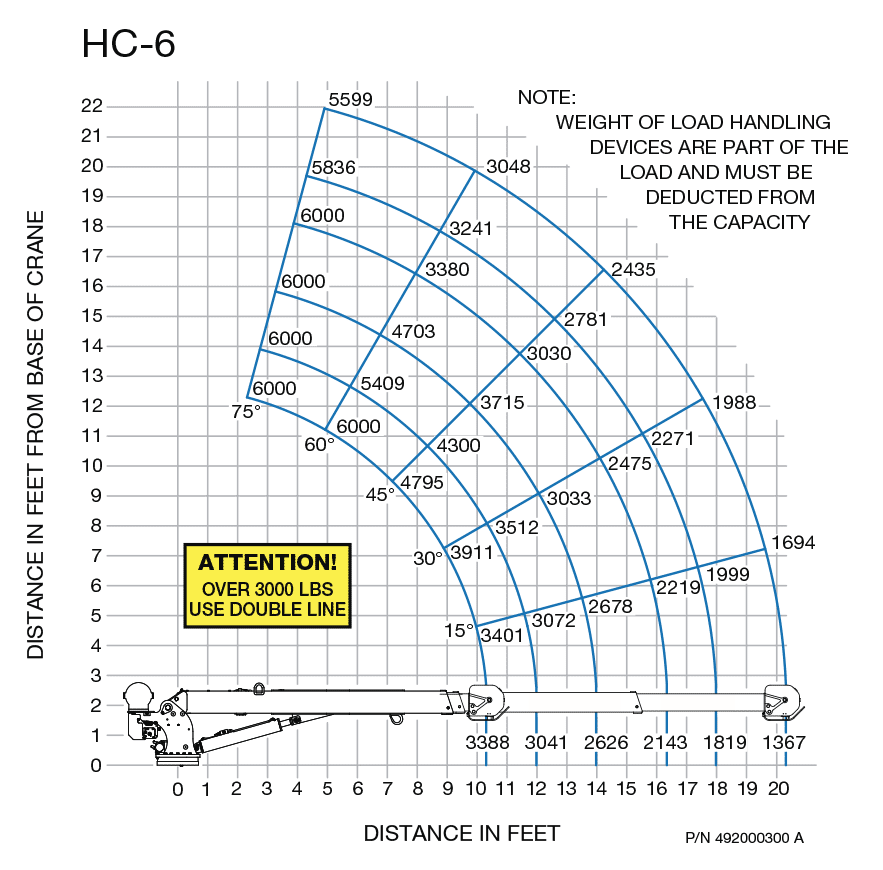

Hydraulic Crane with a 35,000 ft-lbs (4.84 tM) moment rating and a maximum lifting capacity of 6,000 lbs. (2,271 kg) at 5' 0" (1.52 m)

Please Call for Availability

800.877.0338

Description

Hydraulic Crane with a 35,000 ft-lbs (4.84 tM) moment rating and a maximum lifting capacity of 6,000 lbs. (2,271 kg) at 5' 0" (1.52 m)

Proportional control of multiple functions simultaneously and independently Adjust any function anytime to a different speed, for total control over the load
Level sensors monitor the angle of the truck and crane with the NexStar FM remote system on a Titan crane body Prevents operation in unsafe, unlevel conditions
Automatic stop at 100% load capacity Keeps people, equipment, and loads safer
Adjustable speed settings; from 25% to 100% Enables fine tuning of speeds for total control over the load
The NexStar FM remote system receiver displays load-monitoring and diagnostic readouts in plain English No codes to look-up or memorize; operator views precise percentage load capacity
NexStar available with either tethered or fully-featured wireless remote options Your choice for preferred control method
Transmitter is IP66 rated and CE certified Sealed and water protected for maximum durability
80 ft (24.38 m) of 5/16" (8 mm) aircraft quality cable
Stowed Boom Length: 10' 4" (3.96 m)
Extended Boom Length: Width: 1' 11¼" (.59 m)
Width: 1' 11¼" (.59 m)
Height: 2' 11¾" (.83 m)
Base Plate Dimensions: 16.75" x 16.75" (.43 m x .43 m)
Single Line Speed: 60 ft/min (18.3 m/min)
OSHA 1910.180 ANSI B30.5

Limited two-year factory warranty
