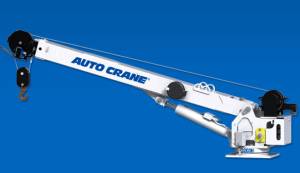

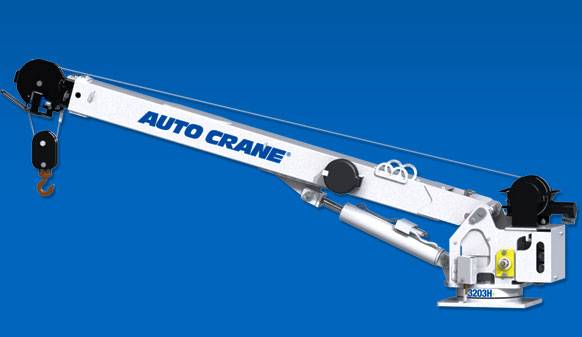

Auto Crane Hydraulic Crane (3203H Series)

AUTC:3203H Series

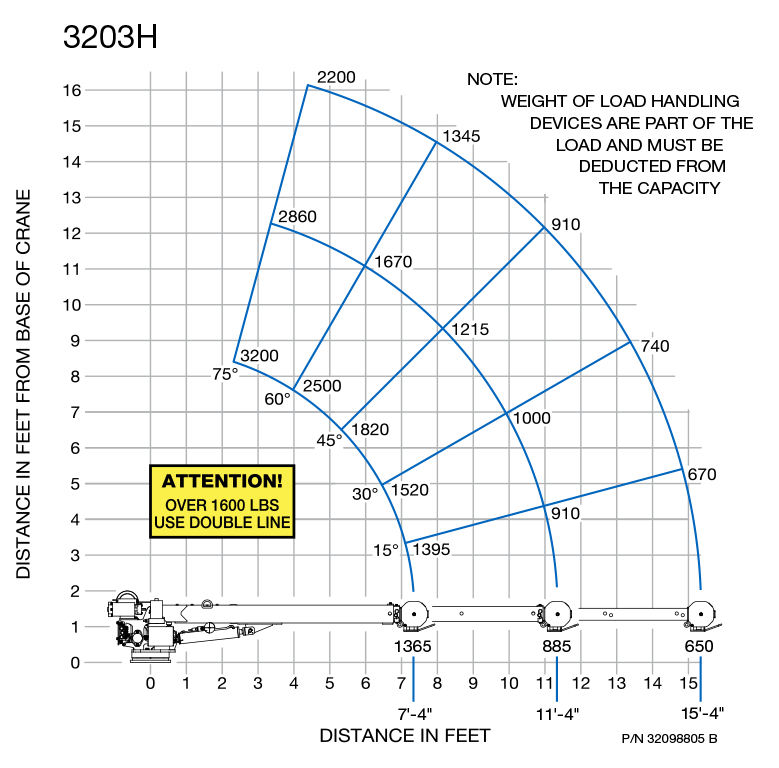

Hydraulic Crane with a 10,000 ft lb (1.38 ton-m) moment rating and a maximum lifting capacity of 3,200 lb (1,452 kg) at 3 ft (0.9 m)

Please Call for Availability
800.877.0338

Description

Hydraulic Crane with a 10,000 ft lb (1.38 ton-m) moment rating and a maximum lifting capacity of 3,200 lb (1,452 kg) at 3 ft (0.9 m)
  • Automatic overload protection system Keeps people, equipment, and loads safer
  • Full, non-continuous power rotation 370 Degrees movement for maximum versatility in lifting
  • Capable of lifting at 100% in all positions on Titan crane bodies with outriggers Maximized capacity for lifting
  • -3 Degrees to +75 Degrees boom elevation Greater work area capability with maximum range of working angle limits
  • Small sheave Fits into tighter spaces
  • 62 ft. (18.9 m) of 7/32" (6 mm) aircraft quality cable; optional 75 ft. (22.9 m) cable
  • Stowed Boom Length: 9' 2.75" (2.81 m)
  • Extended Boom Length: Width: 1' 6.31" (.47 m)
  • Width: 1' 6.31" (.47 m)
  • Height: 2' (.61 m)
  • Base Plate Dimensions: 1' 1.5" x 1' 4.75" (.34 m x .43 m)
  • Single Line Speed: 27 ft/min (8.23 m/min)
  • OSHA 1910.180 ANSI B30.5

Warranty

Limited two-year factory warranty
