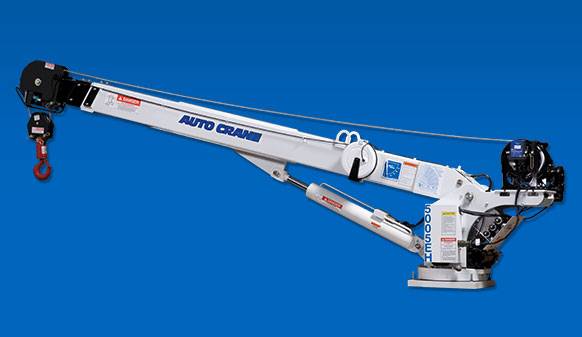

Auto Crane Electric Over Hydraulic Crane (5005EH Series)

AUTC:5005EH Series

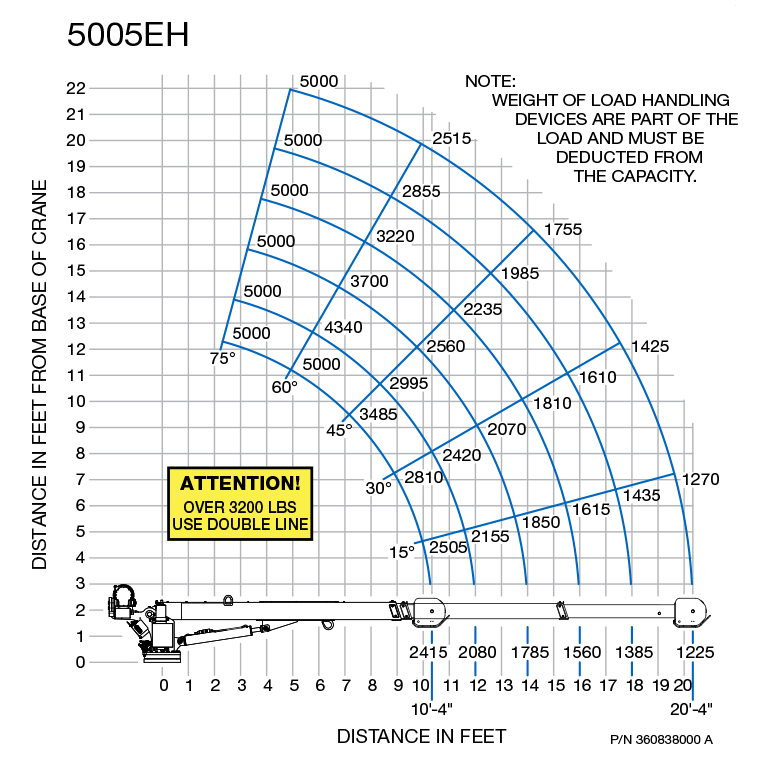

Electric Over Hydraulic Crane with a 25,000 ft lb (3.5 ton-m); maximum lifting capacity of 5,000 lb (2,268 kg) at 5 ft. (1.5 m)

Please Call for Availability
800.877.0338

Description

Electric Over Hydraulic Crane with a 25,000 ft lb (3.5 ton-m); maximum lifting capacity of 5,000 lb (2,268 kg) at 5 ft. (1.5 m)
  • Automatic overload protection system Keeps people, equipment, and loads safer
  • Full power extension to 20' 4" (6.2 m) Ease of use
  • Full, continuous power rotation 360 Degrees movement for maximum versatility in lifting
  • Capable of lifting at 100% in all positions on Titan crane bodies with outriggers Maximized capacity for lifting
  • -14 Degrees to +75 Degrees boom elevation Greater work area capability with maximum range of working angle limits
  • Small sheave Fits into tighter spaces
  • 80 ft (24.3 m) of 5/16" (8 mm) aircraft quality cable
  • Stowed Boom Length: 13' 1" (3.98 m)
  • Extended Boom Length: Width: 1' 9.75" (.55 m)
  • Width: 1' 9.75" (.55 m)
  • Height: 2' 11.75" (.90 m)
  • Base Plate Dimensions: 16.75" x 16.75" (.43 m x .43 m)
  • Single Line Speed: 36 ft/min (10.97 m/min)
  • 2.5 hp 24V DC electric hoist motor
  • OSHA 1910.180 ANSI B30.5
  • Requirements- Truck must be equipped with 738896-000 outriggers or equal. 14,500 GVWR minimum chassis requirement. (Does not include bodies and accessories). Battery Information: 575 amp cold cranking rating, 130 minute reserve capacity, maintenance type battery required for 12/24 volt DC operation. 75 amp minimum truck alternator required. Two batteries required..

Warranty

Limited two-year factory warranty
