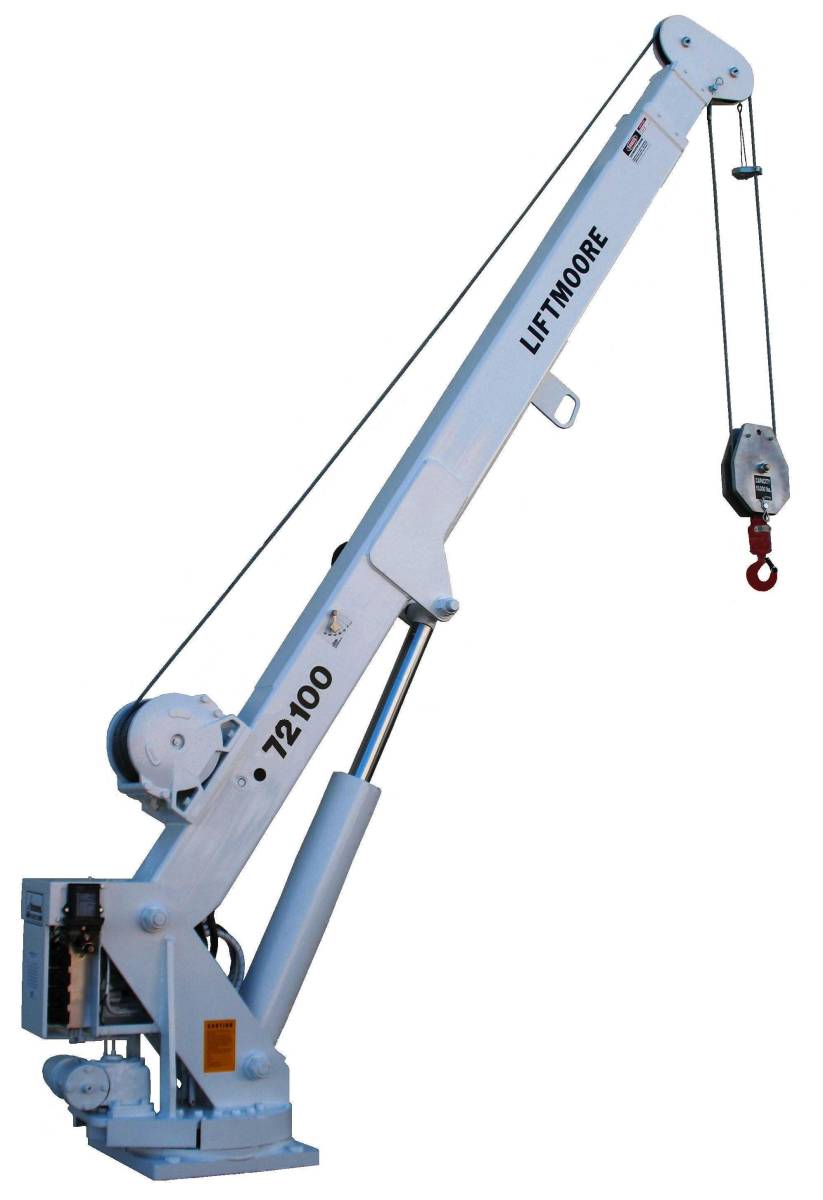

Liftmoore Hydraulic Crane: 72100DXP Series (72100DXP-30)

(0) Reviews: Write first review

SKU: LIFT:72100DXP-30

Hydraulic Crane with 72,000 ft.-lb. moment rating and 10,000 lb. max capacity

Please Call for Availability

800.877.0338

Description

Hydraulic Crane with Maximum Capacity 10,000 Lbs. at 7.2 Ft. Load Radius.

Maximum Capacity 10,000 Lbs. at 7.2 Ft. Load Radius.
Planetary Gear Winch - single line speed 45 fpm at 8 gpm
Proportional Hydraulic Control System Standard
Wireless Radio Remote Controls with E-Stop & audible signal function
Galvanized Aircraft Cable 7/16" x 100 Ft. (17,600 Lb. Breaking Strength)
Traveling Block with Ball Bearing Swivel Safety Hook
Power Rotation - Unlimited Boom Elevation - Full Power (-5 Deg. To 75 Deg.)
Boom Extension - Full Power (15' - 30')
Counter balance valve (holding valve on all cylinders)
Overload Protection System
Anti-Two Block System
Meets requirements of 29 CFR 1910.180, ANSI B30.5, SAE J1063
Mounting Plate is 21" Square with a 15.5" X 18.5" bolt pattern
Included: Battery Power Cable 10 Ga. x 25 Ft. with toggle switch, switch bracket, terminal rings & fuse for the required DC power connection to vehicle. Bubble Level . Crane-Truck Stability Plate. Recommended Installation Instructions. Owners Manual.
Requirements: PTO, Pump, Reservoir, Filter and Hoses. 8 GPM at 2750 PSI for optimal performance. Mounting Bolts Grade 8: 1.25" Dia. (4). Installer responsible for meeting OSHA stability requirements of 29 CFR -1910.180 (c)(1). Boom Rest (P.N. 26718 service body when stowing above horizontal, 22842 for flat bed)
Recommended: Adjustable pressure relief & flow control valves will ensure that the best optimum performance can be obtained. 72K Outriggers for meeting vehicle stability requirements. Minimum Recommended Vehicle GVWR 30,000 lbs.
