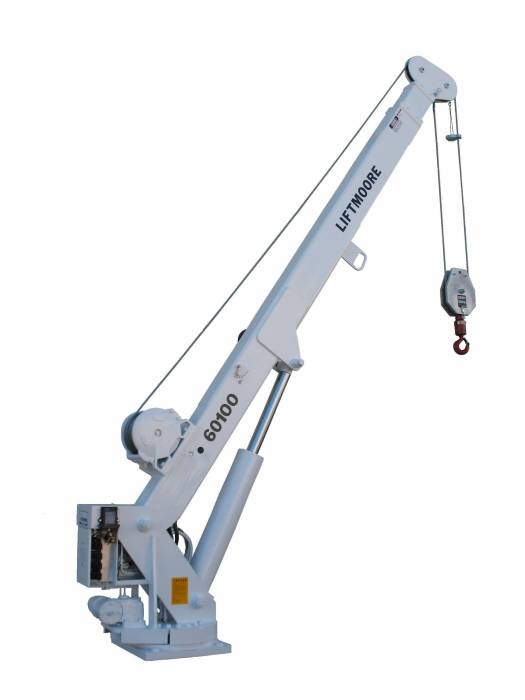

Liftmoore Hydraulic Crane: 60100DXP Series (60100DXP-24)

(0) Reviews: Write first review

SKU: LIFT:60100DXP-24

Hydraulic Crane with 10,000 ft.-lb. moment rating and 3,200 lb. max capacity

Please Call for Availability

800.877.0338

Description

Hydraulic Crane with Maximum Capacity 10,000 Lbs. at 6 Ft. Load Radius.

Maximum Capacity 10,000 Lbs. at 6 Ft. Load Radius.
Planetary Gear Winch - single line speed 45 fpm at 8 gpm
Proportional Hydraulic Control System Standard
Wireless Radio Remote Controls with E-Stop & audible signal function
Galvanized Aircraft Cable 7/16" x 100 Ft. (17,600 Lb. Breaking Strength)
Traveling Block with Ball Bearing Swivel Safety Hook
Power Rotation - Unlimited Boom Elevation - Full Power (-5 Deg. To 75 Deg.)
Boom Extension - Full Power (11'-24')
Counter balance valve (holding valve on all cylinders)
Overload Protection System
Anti-Two Block System
Meets requirements of 29 CFR 1910.180, ANSI B30.5, SAE J1063
Mounting Plate is 21" Square with a 15.5" X 18.5" bolt pattern
Included: Battery Power Cable 10 Ga. x 25 Ft. with toggle switch, switch bracket, terminal rings & fuse for the required DC power connection to vehicle. Bubble Level . Crane-Truck Stability Plate. Recommended Installation Instructions. Owners Manual.
Requirements: PTO, Pump, Reservoir, Filter and Hoses. 8 GPM at 2750 PSI for optimal performance. Mounting Bolts Grade 8: 1.25" Dia. (4). Installer responsible for meeting OSHA stability requirements of 29 CFR -1910.180 (c)(1). Boom Rest (P.N. 27818 for service body or 24589 for flat bed)
Recommended: Adjustable pressure relief & flow control valves will ensure that the best optimum performance can be obtained. 72K Outriggers for meeting vehicle stability requirements. Minimum Recommended Vehicle GVWR 26,000 lbs.
