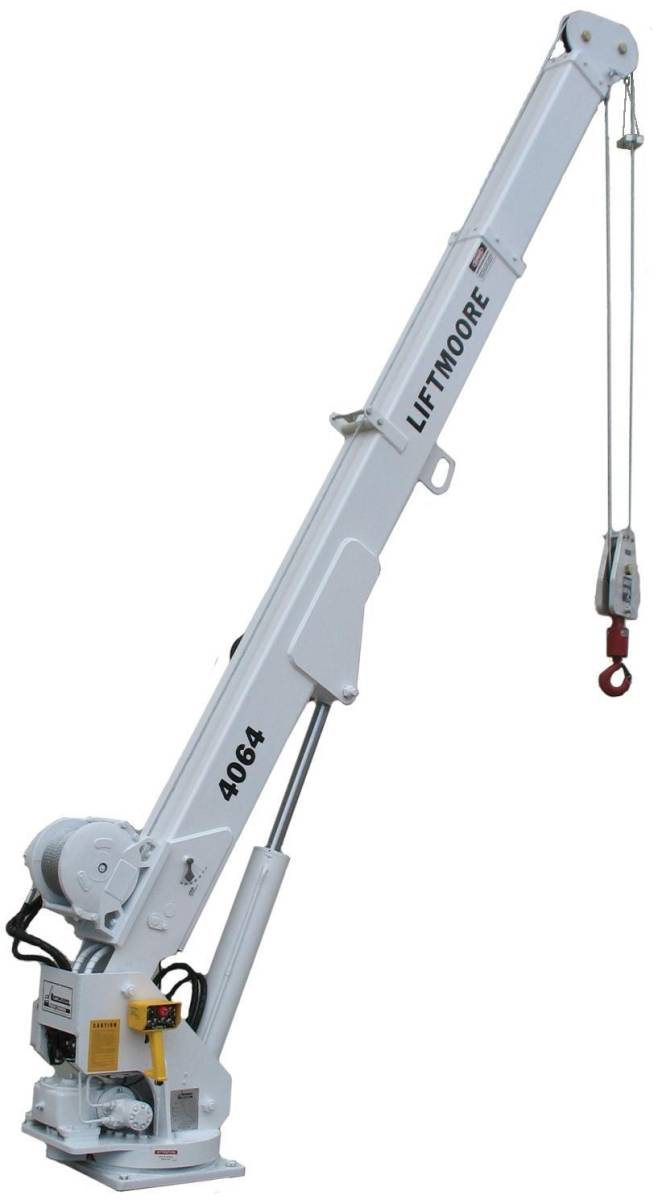

Liftmoore Hydraulic Crane: 4064DXP Series (4064DXP-22)

(0) Reviews: Write first review

SKU: LIFT:4064DXP-22

Hydraulic Crane with 40,000 ft.-lb. moment rating and 6,400 lb. max capacity

Please Call for Availability

800.877.0338

Description

Hydraulic Crane with Maximum Capacity 6,400 Lbs. at 6.2 Ft. Load Radius

Maximum Capacity 6,400 Lbs. at 6.2 Ft. Load Radius
Planetary Gear Winch - single line speed 45 fpm at 8 gpm
Proportional Hydraulic Control System Standard
Wireless Radio Remote Control with E-Stop & audible signal function
Galvanized Aircraft Cable 3/8" x 95 Ft. (14,400 Lb. Breaking Strength)
Traveling Block with Roller Bearing Swivel Safety Hook
Power Rotation - Unlimited Boom Elevation - Full Power (-5 Deg. To 75 Deg.)
Boom Extension - Full Power (10 Ft. - 22 Ft.)
Counter balance valve (holding valve on all cylinders)
Overload Protection System
Anti-Two Block System
Meets requirements of 29 CFR 1910.180, ANSI B30.5 and SAE J1063
Mounting Plate is 17 3/4" square with a 14 3/4" square bolt pattern
Included: Battery Power Cable 10 Ga. x 25 Ft. with toggle switch, switch bracket, terminal rings & fuse for the required DC power connection to vehicle. Bubble Level . Crane-Truck Stability Plate. Recommended Installation Instructions. Owners Manual.
Requirements: PTO, Pump, Reservoir and Hoses. Pump should supply 8 GPM at 2750 PSI. Mounting Bolts Grade 8: 7/8" Dia. (4). Installer responsible for meeting OSHA stability requirements of 29 CFR -1910.180 (c)(1). Boom Rest (P.N. 27818 for service body or 24589 for flat bed)
Recommended: Adjustable pressure relief & flow control valves will ensure that the best optimum performance can be obtained. 40K Outriggers for meeting vehicle stability requirements. Minimum Recommended Vehicle GVWR 19,500 lbs.
