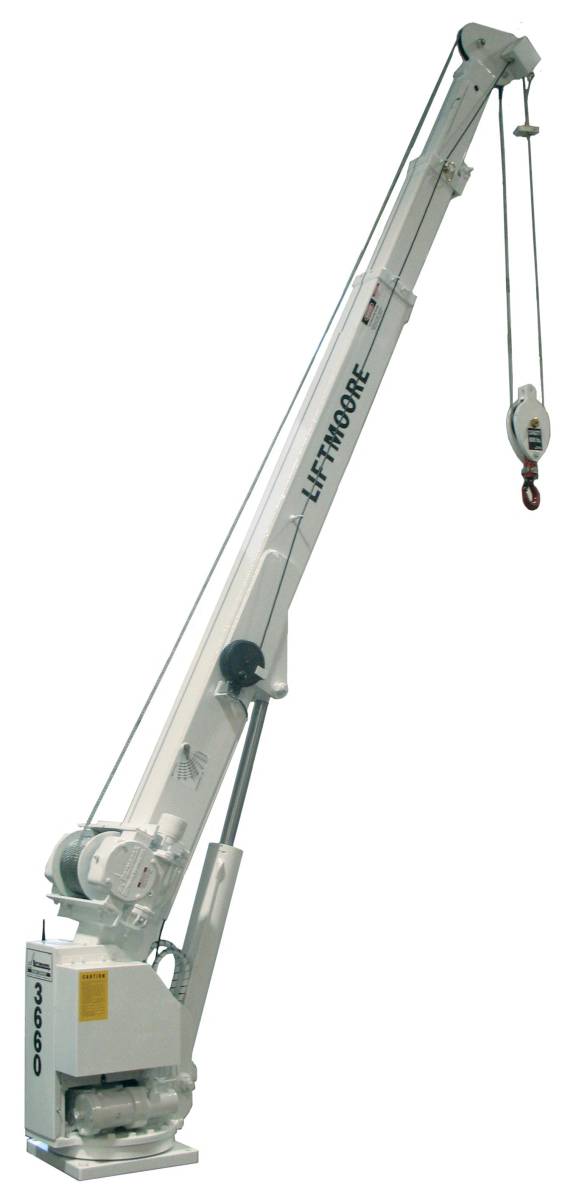

Liftmoore Hydraulic Crane: 3660XP Series (3660XP-20)

(0) Reviews: Write first review

SKU: LIFT:3660XP-20

Hydraulic Crane with 36,000 ft.-lb. moment rating and 6,000 lb. max capacity.

Please Call for Availability

800.877.0338

Description

Hydraulic Crane with Maximum Capacity 6,000 Lbs. at 6 Ft. Load Radius

Maximum Capacity 6,000 Lbs. at 6 Ft. Load Radius
Worm Gear Winch - single line speed 19 fpm at 6 gpm
Proportional Hydraulic Control System Standard
Wireless Radio Remote Control with E-Stop & audible signal function
Galvanized Aircraft Cable 3/8" x 95 Ft. (14,400 Lb. Breaking Strength)
Traveling Block with Roller Bearing Swivel Safety Hook
Power Rotation - Unlimited Boom Elevation - Full Power (-5 Deg. To 75 Deg.)
Boom Extension - Power 10 Ft. - 16 Ft. ; Manual 16 Ft. - 20 Ft.
Counter balance valve (holding valve on all cylinders)
Overload Protection System
Anti-Two Block System
OPTION: Remote Pendant Control (Wired)
Meets requirements of 29 CFR 1910.180, ANSI B30.5, SAE J1063
Mounting Plate is 16 3/4" square with a 14 3/4 " square bolt pattern.
Included: Battery Power Cable 10 Ga. x 25 Ft. with toggle switch, switch bracket, terminal rings & fuse for the required DC power connection to vehicle. Bubble Level . Crane-Truck Stability Plate. Recommended Installation Instructions. Owners Manual.
Requirements: PTO, Pump, Reservoir and Hoses. Pump should supply 6 GPM at 2750 PSI. Mounting Bolts Grade 8: 7/8" Dia. (4). Installer responsible for meeting OSHA stability requirements of 29 CFR -1910.180 (c)(1). Boom Rest (P.N. 27818 for service body or 24589 for flat bed)
Recommended: Adjustable pressure relief & flow control valves will ensure that the best optimum performance can be obtained. 36K Outriggers for meeting vehicle stability requirements. Minimum Recommended Vehicle GVWR 17,500 lbs.
