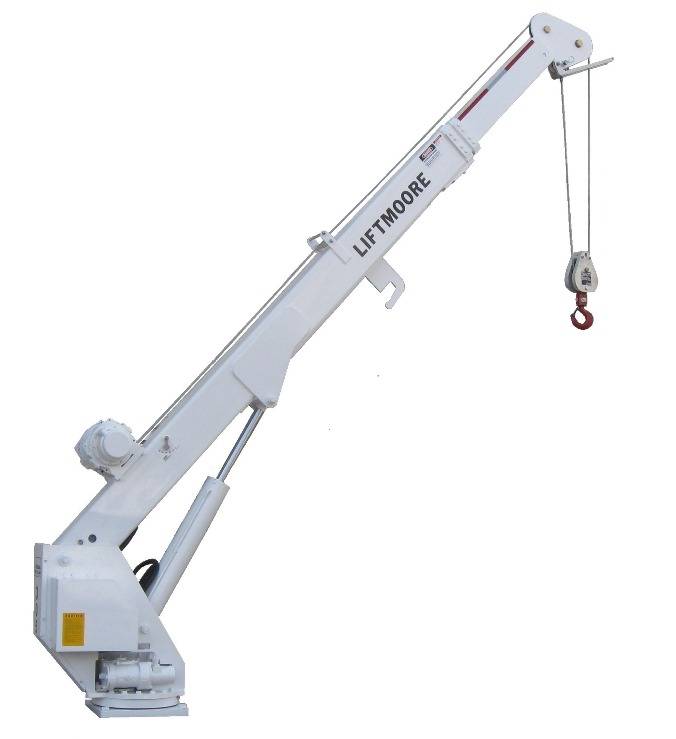

Liftmoore Hydraulic Crane: 3055DXP Series (3055DXP)

(0) Reviews: Write first review
LIFT:3055DXP

Hydraulic Crane with 30,000 ft.-lb. moment rating and 5,000 lb. max capacity

Please Call for Availability
800.877.0338

Description

Hydraulic Crane with Maximum Capacity 5,500 Lbs. at 5.5 Ft. Load Radius
  • Maximum Capacity 5,500 Lbs. at 5.5 Ft. Load Radius
  • Planetary Gear Winch - single line speed 31 fpm at 6 gpm
  • Proportional Hydraulic Control System Standard
  • Wireless Radio Remote Control with E-Stop & audible signal function
  • Galvanized Aircraft Cable 3/8" x 95 Ft. (14,400 Lb. Breaking Strength)
  • Traveling Block with Roller Bearing Swivel Safety Hook
  • Power Rotation - Unlimited Boom Elevation - Full Power (-5 Deg. To 75 Deg.)
  • Boom Extension - Full Power 10 Ft. - 20 Ft.
  • Counter balance valve (holding valve on all cylinders)
  • Overload Protection System
  • Anti-Two Block System
  • Rotates on a gear bearing driven by a worm gear box with a 45:1 ratio.
  • Meets requirements of 29 CFR 1910.180, ANSI B30.5, SAE J1063
  • Mounting Plate is 16 3/4" square with a 14 3/4 " square bolt pattern.
  • Included: Battery Power Cable 10 Ga. x 25 Ft. with toggle switch, switch bracket, terminal rings & fuse for the required DC power connection to vehicle. Bubble Level . Crane-Truck Stability Plate. Recommended Installation Instructions. Owners Manual.
  • Requirements: PTO, Pump, Reservoir and Hoses. Pump should supply 8 GPM at 2750 PSI. Mounting Bolts Grade 8: 7/8" Dia. (4). Installer responsible for meeting OSHA stability requirements of 29 CFR -1910.180 (c)(1). Boom Rest (P.N. 27818 for service body or 24589 for flat bed)
  • Recommended: Adjustable pressure relief & flow control valves will ensure that the best optimum performance can be obtained. 36K Outriggers for meeting vehicle stability requirements. Minimum Recommended Vehicle GVWR 17,500 lbs.
