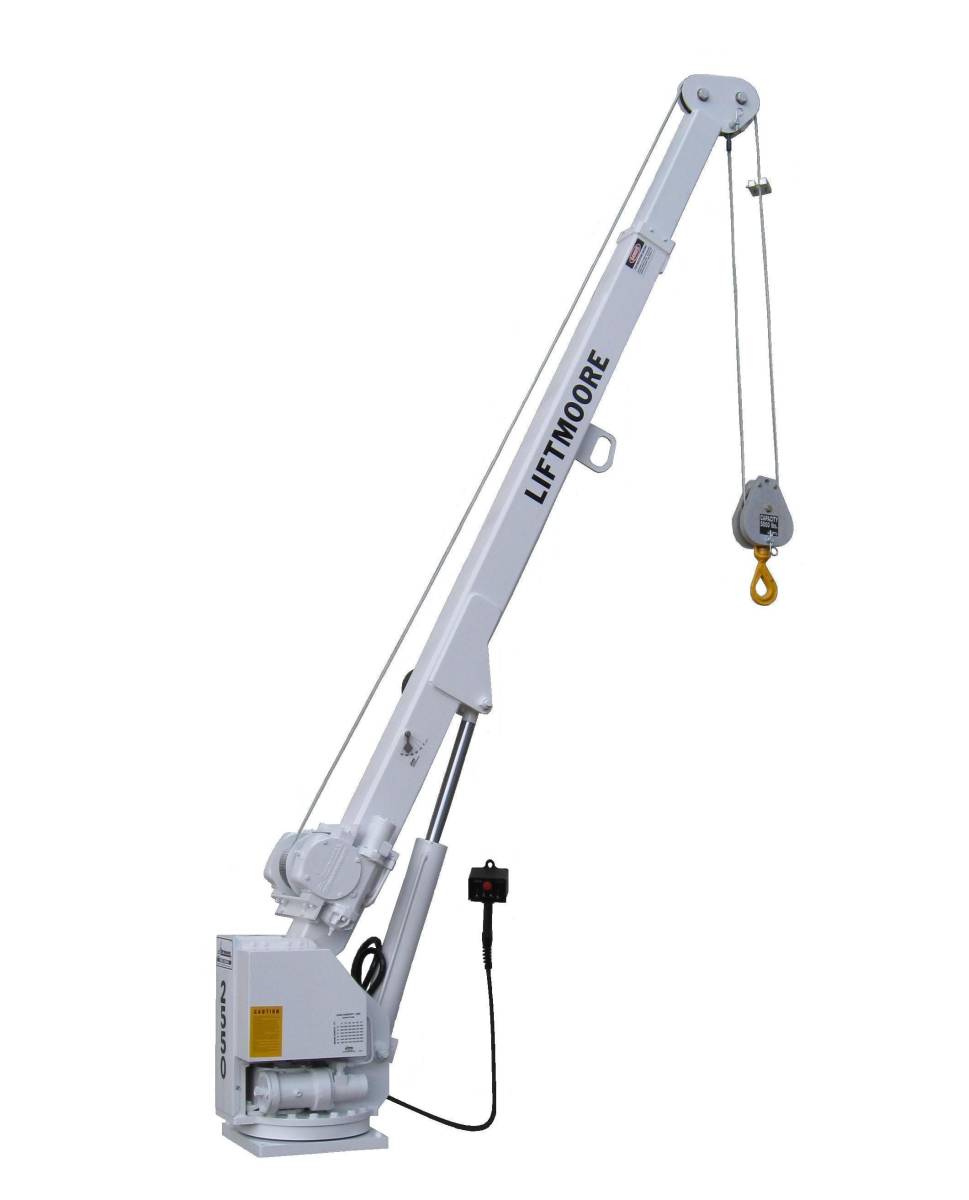

Liftmoore Hydraulic Crane: 2550XP Series (2550XP-20)
LIFT:2550XP-20
Hydraulic Crane with 25,000 ft.-lb. moment rating and 5,000 lb. max capacity
Please Call for Availability
800.877.0338
Description
Hydraulic Crane with Maximum Capacity 5,000 Lbs. at 5 Ft. Load Radius
- Maximum Capacity 5,000 Lbs. at 5 Ft. Load Radius
- Worm Gear Winch - single line speed 20 fpm at 6 gpm
- Proportional hydraulic control System Standard
- Wireless Radio Remote Control with E-Stop & audible signal function.
- Galvanized Aircraft Cable 5/16" x 80 Ft. (9,800 Lb. Breaking Strength)
- Traveling Block with Roller Bearing Swivel Safety Hook
- Power Rotation - Unlimited Boom Elevation - Full Power (-5 Deg. To 75 Deg.)
- Boom Extension - Power 10 Ft. - 16 Ft. ; Manual 16 Ft. - 20 Ft.
- Counter balance valve (holding valve on all cylinders)
- Overload Protection System
- Anti-Two Block System
- Meets requirements of 29 CFR 1910.180, ANSI B30.5, SAE J1063
- Mounting Plate is 16 3/4" square with a 14 3/4 " square bolt pattern.
- Included: Battery Power Cable 10 Ga. x 25 Ft. with toggle switch, switch bracket, terminal rings & fuse for the required DC power connection to vehicle. Bubble Level . Crane-Truck Stability Plate. Recommended Installation Instructions. Owners Manual.
- Requirements: PTO, Pump, Reservoir and Hoses. Pump should supply 6 GPM at 2750 PSI. Four 7/8 Grade 8 mounting bolts. Installer responsible for meeting OSHA stability requirements of 29 CFR -1910.180 (c)(1). Boom Rest (P.N. 27818 for service body or 24589 for flat bed)
- Recommended: Adjustable pressure relief & flow control valves will ensure that the best optimum performance can be obtained. 25K Outriggers for meeting vehicle stability requirements. Minimum Recommended Vehicle GVWR 14,500 lbs.
