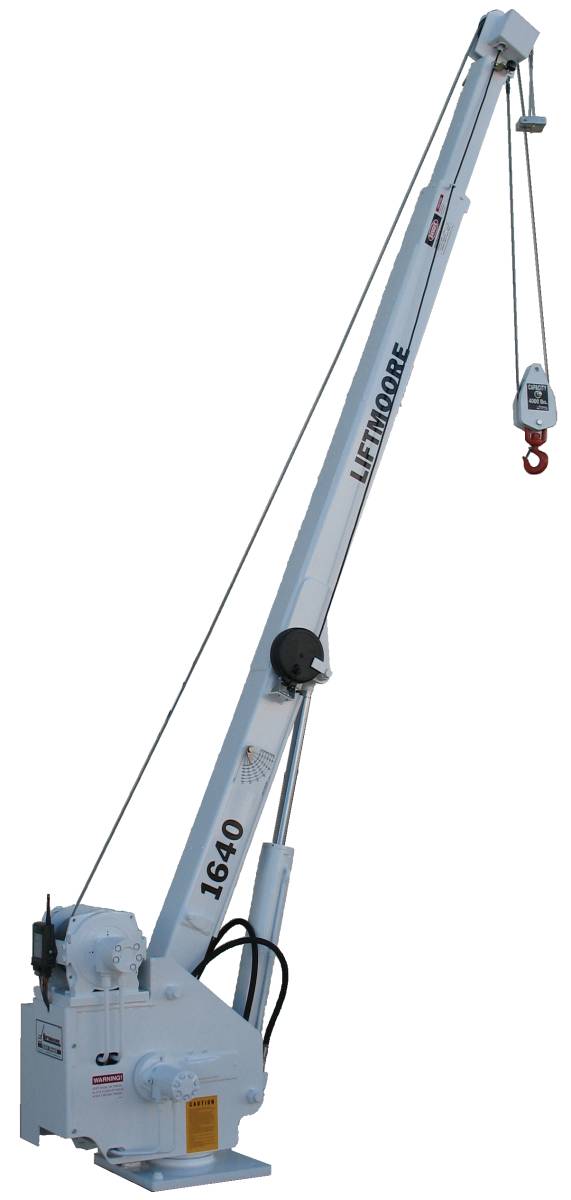

Liftmoore Hydraulic Crane: 1640XP Series (1640XP-16)

(0) Reviews: Write first review
LIFT:1640XP-16

Hydraulic Crane with 16,000 ft.-lb. moment rating and 4,000 lb. max capacity

Please Call for Availability
800.877.0338

Description

Hydraulic Crane with Maximum Capacity 4,000 Lbs. at 4 Ft. Load radius
  • Maximum Capacity 4,000 Lbs. at 4 Ft. Load radius
  • Planetary Gear Winch - single line speed 30 fpm at 5 gpm
  • Proportional hydraulic control System Standard
  • Wireless Radio Remote Control with E-Stop & audible signal function. (Optional wired control available)
  • Galvanized Aircraft Cable 1/4" x 70 Ft. (7,000 Lb. Breaking Strength)
  • Travel Block w/ swivel block For easy two part line hook up
  • Counter balance valve (holding valve on all cylinders)
  • Power Rotation - 365 degree Boom Elevation - Full Power (-5 Deg. To 75 Deg.)
  • Power boom extension from 8 Ft. to 12 Ft. with Manual to 16 Ft.
  • Overload Protection System
  • Anti-Two Block System
  • Meets requirements of 29 CFR 1910.180, ANSI B30.5, SAE J1063
  • Mounting plate is 15" square with a 12" square bolt pattern
  • Included: Battery Power Cable 10 Ga. x 25 Ft. with toggle switch, switch bracket, terminal rings & fuse for the required DC power connection to vehicle. Mounting Bolts Grade 8: 0.75" x 3.00" (Four). Bubble Level . Crane-Truck Stability Plate . Recommended Installation Instructions. Owners Manual
  • Requirements: PTO, Pump, Reservoir and Hoses Pump should supply 6 GPM at 2750 PSI. Installer responsible for meeting OSHA stability requirements of 29 CFR -1910.180 (c)(1). Boom Rest (P.N. 27860 for service body or P.N. 22158 for flat bed).
  • Recommended: Adjustable pressure relief & flow control valves will ensure that the best optimum performance can be obtained. 18K Outriggers for meeting vehicle stability requirements. Minimum Recommended Vehicle GVWR 14,500 lbs.
