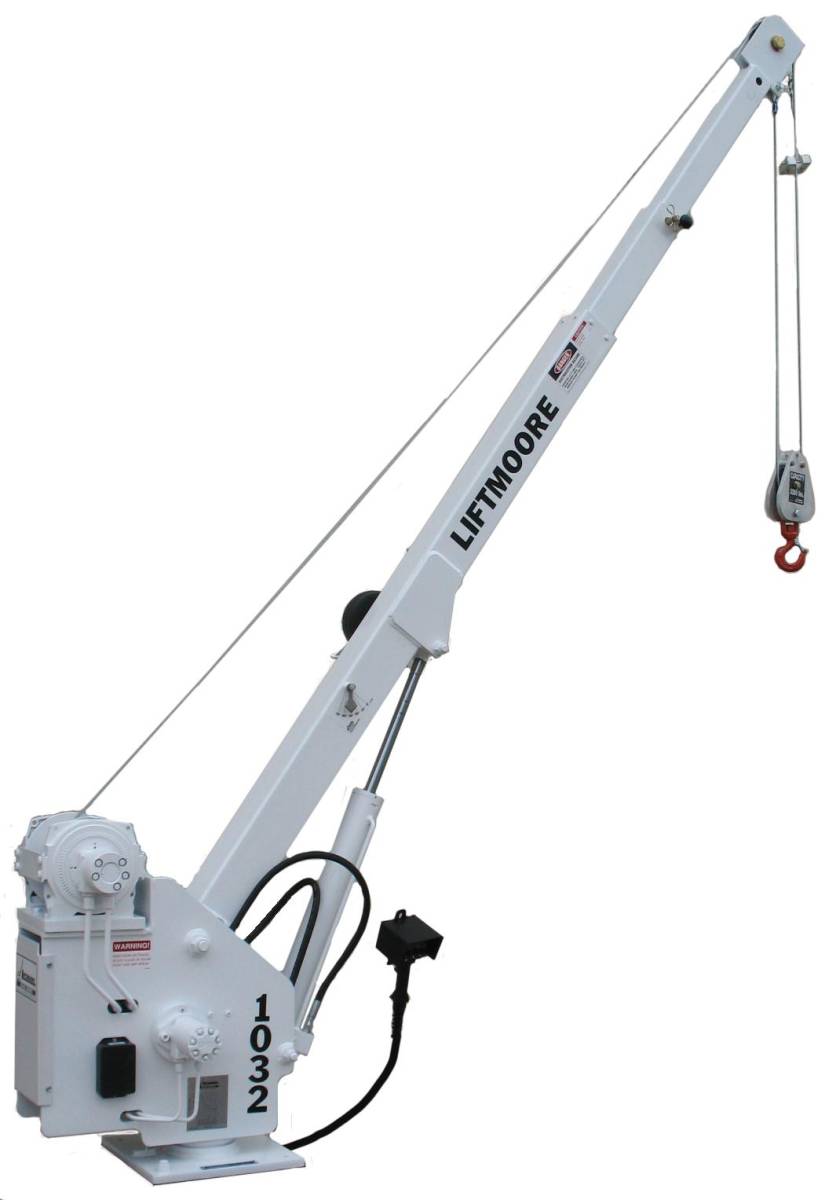

Liftmoore Hydraulic Crane: 1032XP Series (1032XP-15)

(0) Reviews: Write first review

SKU: LIFT:1032XP-15

Hydraulic Crane with 10,000 ft.-lb. moment rating and 3,200 lb. max capacity

Please Call for Availability

800.877.0338

Description

Hydraulic Crane with Maximum Capacity 3,200 Lbs. at 3 Ft. Load radius

Maximum Capacity 3,200 Lbs. at 3 Ft. Load radius
Planetary Gear Winch - single line speed 34 fpm at 5 gpm
Proportional hydraulic control System Standard
Wireless Radio Remote Control with E-Stop & audible signal function. (Optional wired control available)
Galvanized Aircraft Cable 1/4" x 62 Ft. (7,000 Lbs. Breaking Strength)
Travel Block w/ swivel hook For easy two part line hook up
Power Rotation - 365 degree
Boom Elevation - Full Power (-5 Deg. To 75 Deg.)
The 1032XP-15 has power extension from 7 ft.-11 ft. with a manual pull out to 15 ft.
Counter balance valve (holding valve on all cylinders)
Overload Protection System
Anti-Two Block System
Meets requirements of 29 CFR 1910.180, ANSI B30.5, SAE J1063
Included: Battery Power Cable 10 Ga. x 25 Ft. with toggle switch, switch bracket, terminal rings & fuse for the required DC power connection to vehicle. Mounting Bolts Grade 8: 0.50" x 2.50" (Four). Bubble Level . Crane-Truck Stability Plate . Recommended Installation Instructions. Owners Manual.
Requirements: PTO, Pump, Reservoir and Hoses Pump should supply 6 GPM at 2750 PSI. Installer responsible for meeting OSHA stability requirements of 29 CFR -1910.180 (c)(1). Boom Rest (P.N. 27860 for service body or P.N. 22158 for flat bed).
Recommended: Adjustable pressure relief & flow control valves will ensure that the best optimum performance can be obtained. 12K Outriggers for meeting vehicle stability requirements. Minimum Recommended Vehicle GVWR 11,000 lbs.
