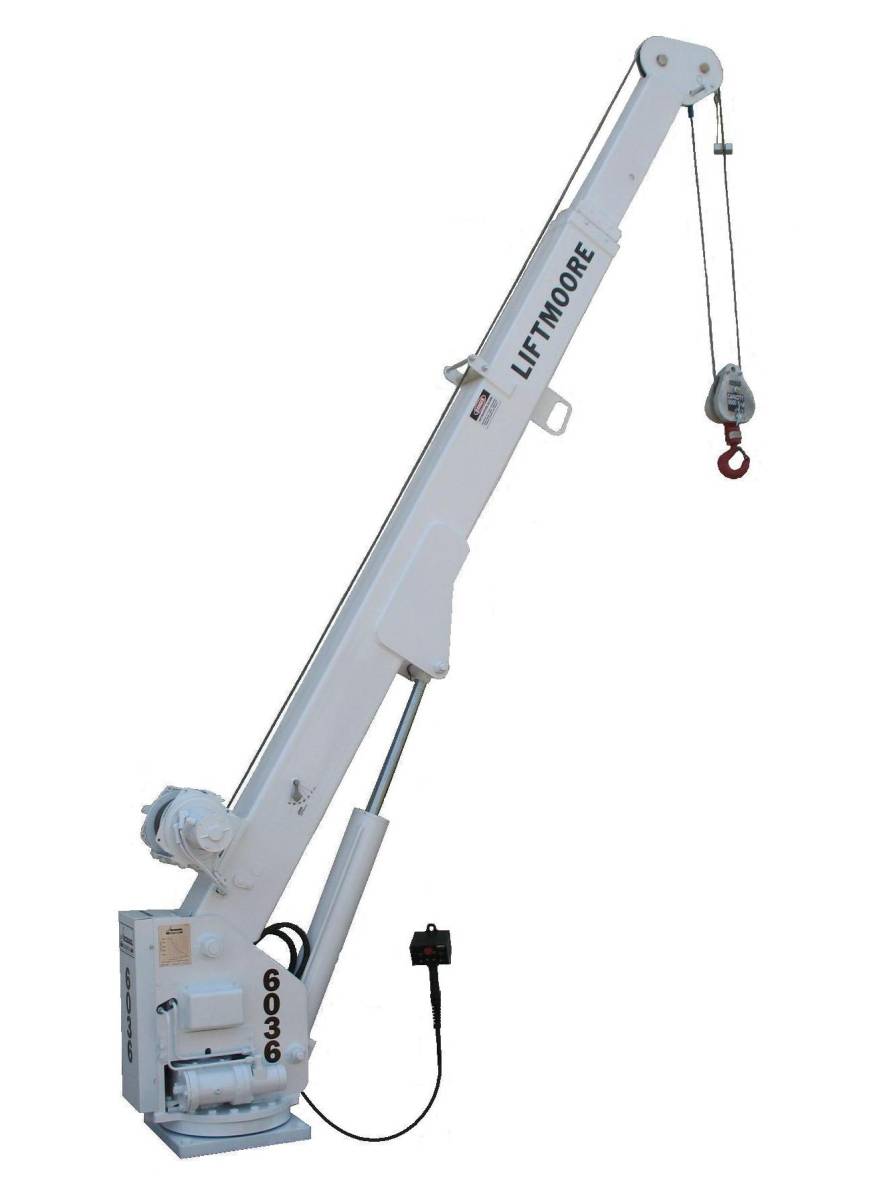

Liftmoore DC Powered Crane: 6036DX Series (6036DX-22 WI)
LIFT:6036DX-22 WI
DC Powered Crane with 36,000 ft.-lb. moment rating and 6,000 lb. max capacity
Please Call for Availability
800.877.0338
Description
DC Powered Crane with Maximum Capacity 6,000 Lbs. at 6 Ft. Load Radius.
- Maximum Capacity 6,000 Lbs. at 6 Ft. Load Radius.
- Planetary Gear Electric Winch
- On / Off 12 Volt Electric Remote Pendant Control 25 Ft. with E-Stop & audible signal function
- Wire Rope 6 X 36 5/16" x 90 Ft. (10,540 Breaking Strength)
- Power Rotation - Unlimited Boom Elevation - Full Power (-5 Deg. To 75 Deg.)
- Boom Extension - Full Power 11 Ft. - 22 Ft.
- Traveling Block with Roller Bearing Swivel Safety Hook.
- Counter balance valve (holding valve on cylinder)
- Wireless Remote Control
- Digital voltmeter / ammeter, capable of Wi-Fi diagnostics through 26684 Tool
- Overload Protection System
- Anti-Two Block System
- Meets requirements of 29 CFR 1910.180, ANSI B30.5, SAE J1063
- Included: Battery Power Cable #1 x 30 Ft. with Quick Disconnect Mecon. Circuit Breaker, 150 Amp (2). Circuit Breaker, 200 Amp (1). Ground Cable 1/0 x 3 Ft. for the factory battery to the truck frame. Master Disconnect Switch and Bracket. Terminal Lugs 1/0 GA 0.25 Dia. (4). Terminal Lugs 1/0 GA 0.37 Dia. (4). Bubble Level . Crane-Truck Stability Plate . Recommended Installation Instructions. Owners Manual
- Requirements: Consistent 12 Volt DC power source with sufficient amperage while crane is running under load. For optimum performance, a dedicated battery, Group 4D or larger, deep cycle, near the crane is advised. Mounting Bolts Grade 8: 7/8" Dia. (4). Installer responsible for meeting OSHA stability requirements of 29 CFR -1910.180 (c)(1). Boom Rest (P.N. 27818 for service body or 24589 for flat bed)
- Recommended: Minimum Recommended Vehicle GVWR 17,500 lbs. 36K Outriggers for meeting vehicle stability requirements. Minimum Recommended Vehicle GVWR 17,500 lbs.
