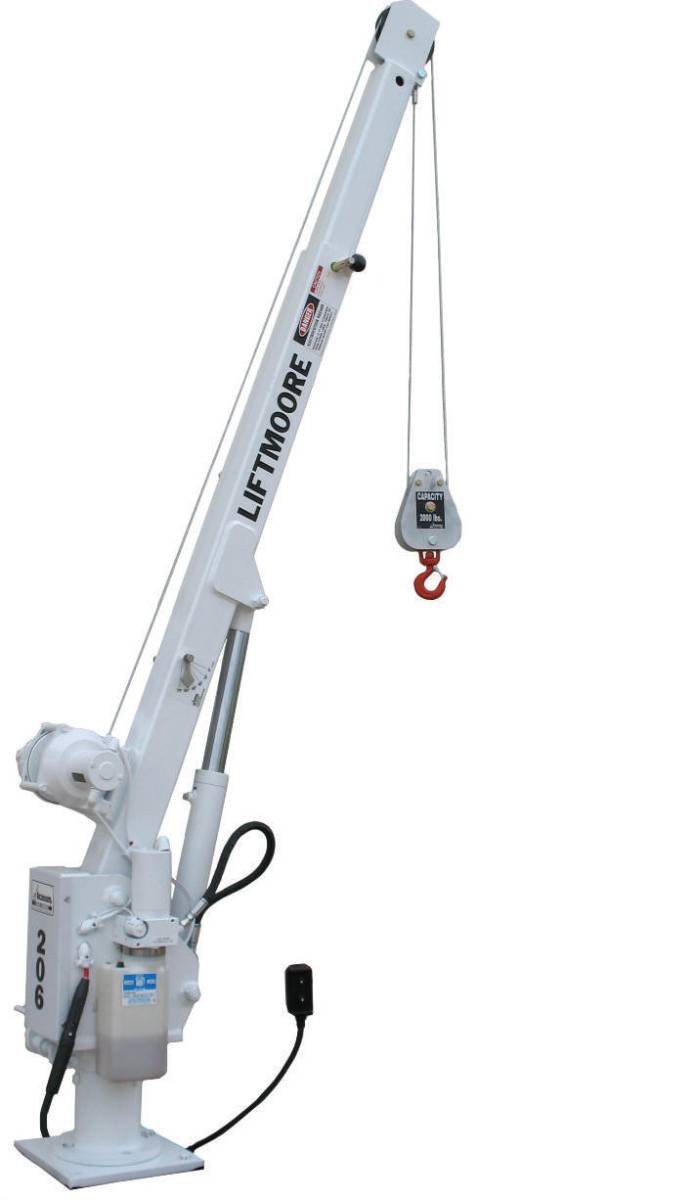

Liftmoore DC Powered Crane: 206EL Series (206ELWS)
LIFT:206ELWS
DC Powered Crane with 6,500 ft.-lb. moment rating and 2,000 lb. max capacity
Please Call for Availability
800.877.0338
Description
DC Powered Crane with Maximum Capacity 2,000 Lbs. at 3.25 Ft. Load radius
- Maximum Capacity 2,000 Lbs. at 3.25 Ft. Load radius
- Planetary Gear Winch with Permanent Magnet Motor
- Pedestal is eliminated, baseplate added for mounting on service body compartment top.
- On / Off 12 Volt Electric Remote Pendant Control 18 Ft. (removable)
- 62 Ft. of 1/4" wire rope w/swivel hook (7,000 Lbs. Capacity Breaking Strength)
- Travel block replaced with down haul pickle weight.
- Manual Rotation 360 Degree - Tapered Roller Bearings for ease of movement with a Manual Band Brake to control swing
- Boom Elevation - Full Power (0 Deg. to 75 Deg.)
- Boom Extension - Manual from 5.5 Ft. to 9 Ft.
- Overload Protection System
- Mounting plate is 12" square with a 9.5" square bolt pattern.
- NOTE : ANTI TWO-BLOCK NOT OFFERED ON THIS MODEL
- Included: Battery Power Cable #4 x 25 Ft. Circuit Breaker, 150 Amp. Ground Cable #4 x 3 Ft. for the factory battery to the truck frame. Mounting Bolts Grade 8: 0.50" x 2.75" (Four). Recommended Installation Instructions. Owners Manual
- Requirements: Consistent 12 Volt DC power source with sufficient amperage while crane is running under load. Installer must assure the vehicle can maintain an appropriately level condition when the crane is in use under load.
- Recommended: A dedicated battery, Group 31, deep cycle, near the crane is advised. Jackstand to provide stability and an appropriately level condition. Minimum Recommended Vehicle GVWR 8,600 lbs.
