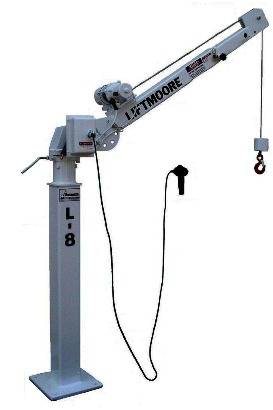

Liftmoore DC Powered Crane: L-8 Series (L-8)

(0) Reviews: Write first review

SKU: LIFT:L-8

DC Powered Crane with 4,500 ft.-lb. moment rating and 800 lb. max capacity

Please Call for Availability

800.877.0338

Description

DC Powered Crane with Maximum Capacity 800 Lbs. at all Load Radii

On / Off 12 Volt Electric Remote Pendant Control 12.5 Ft. (removable)
Maximum Capacity 800 Lbs. at all Load Radii
Planetary Gear Winch with Permanent Magnet Motor
Pedestal Standard Height = 47.3" from base to point of rotation.
Manual Rotation 360 Degree - Tapered Roller Bearings for ease of movement with a Manual Band Brake to control swing
Galvanized Aircraft Cable 3/16" x 25 Ft. (4,200 Lbs. Breaking Strength)
Down haul pickle weight
4 Fixed Boom Elevations ranging from 0 to 75 Degrees, Stows vertically for travel
Boom Extension - Manual from 3 Ft. to 5 Ft.
Mounting plate is 12" square with a 9.5" square bolt pattern.
NOTE : ANTI TWO-BLOCK NOT OFFERED ON THIS MODEL
Ideal for lifting heavy objects into 1/2 & 3/4 ton pickups
Optional ATB available if crane is to be used in Construction.
Included: Battery Power Cable #4 x 25 Ft. Circuit Breaker, 150 Amp. Ground Cable #4 x 3 Ft. for the factory battery to the truck frame. Mounting Bolts Grade 8: 0.50" x 2.75" (Four). Recommended Installation Instructions. Owners Manual
Requirements: Consistent 12 Volt DC power source with sufficient amperage while crane is running under load. Installer must assure the vehicle can maintain an appropriately level condition when the crane is in use under load.
Recommended: A dedicated battery, Group 31, deep cycle, near the crane is advised. Jackstand to provide stability and an appropriately level condition. Minimum Vehicle GVWR of 6,100 Lbs.
