Jerr-Dan 6 Ton Aluminum XLP (6TAXLP)

When the job comes down to a matter of degrees, count on Jerr-Dan’s 6 Ton XLP series with a load angle as low as 7.5 degrees. A conventional deck produces a load angle as low as 10.0 degrees. Available with 21′ and 22′ aluminum decks, including dual-angle models. The XLP-6 features a low-profile subframe that lowers the deck height above the frame rail and provides greatly improved load angles. All 6 Ton XLP models have a 12,000 lb. deck capacity and can be equipped with a 3,500 wheel lift for extra versatility. Our exclusive patented Galvanized Steel Beam Technology™ provides unparalleled strength compared to any aluminum carrier design in the industry.

Features:

• Load angles as low as 7.5 degree; (Achieved with dual-angle deck on air-ride chassis with airbags deflated)
• Lowest maintenance carrier in the world, including No-Lube™ technology for slide pads and pivot joints
• Industry's strongest aluminum beds featuring exclusive, patented Galvanized Steel Beam Technology

Technology:

• On-board hydraulic pressure gauge allows for easy troubleshooting
• Combination winch cable guide roller / tensioner plate
• Manual or air-controlled winch-free spool
• Dual manual free spool
• Corrosion-resistant lighted dual control stations
• Federal Motor Carrier Safety Administration DOT 393 compliant crash protection headboard
• Most advanced, high performance hose / wire cable-tracking system in the industry
• Highest standard DOT reflectivity and lighting levels in the industry
• 12 key slots standard

Miscellaneous:

• Exclusive R.A.I.L.™ System (Rear Awareness Indicator Lights)
• Industry's strongest and most user-friendly SRS™ (Side Recovery System)

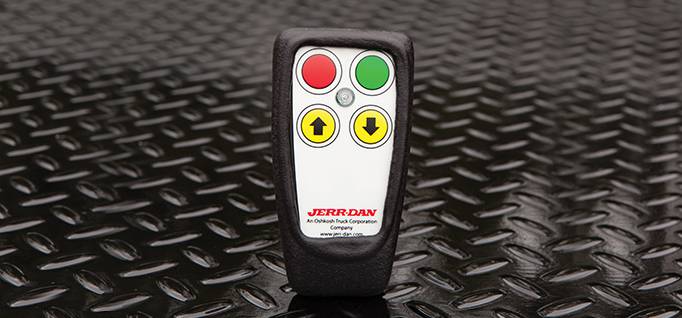

• Wireless remote with exclusive ARM™ (Actuated Remote Mechanism) system
• LED emergency lighting
• Multiple work light mounting locations
• 36", 48", 60" & 78" toolboxes, storage trays and baskets
• Automatic throttle-up on-demand (subject to chassis configuration)
• Galvanized subframe and wheel lift components

• Length: 20', 21', 22'
• Capacity: 12,000 lbs
• Width: 9", 102"

• Style:

  • Conventional or dual angle
  • Extruded 6061-T6 decking
  • Fixed or removable blade side rails

• Winch (worm gear):

  • 8,000 lbs.—3/8" x 56' wire rope
  • 10,000 lbs.—7/16" x 56' wire rope
• Lift Capacity: 3, 500 lbs.
• Tow Capacity: 10,000 lbs
• Maximum Extended Reach: 68"
• Ground Approach Angle: 3 Degrees

• Usable CA (Cable to Axle Centerline):

  • 120"-132" (20' deck)
  • 132"-144" (21' deck)
  • 144"-156" (22' deck)
