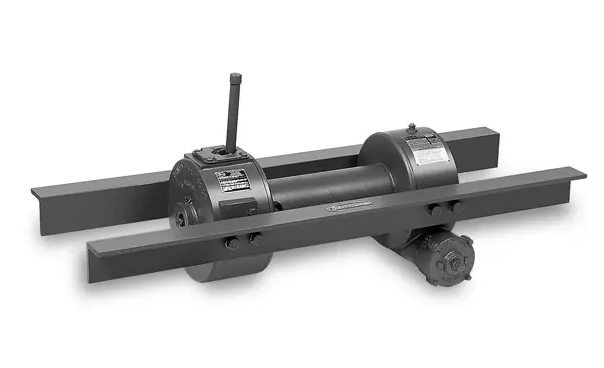

Ramsey H-800 Winch (H-800)
Hydraulic Worm Gear Winches
RMC:H-800
Please Call for Availability
800.877.0338
Description
- Meets SAE-J706
- Rated Line Pull 20,000 Lbs / 9,072 Kg
- Gear Ratio 40:1
- Weight w/o Cable 330 Lbs / 150 Kg
- Brake Yes - brake is self-locking (Includes auxiliary brake)
- Drum Size (L x F x B) 15.00 x 12.13 x 5.69 In / 381.0 x 308.1 x 144.5 MM
- Cable Capacity 240 Ft / 73.2 M
- Recommend Cable Size 5/8 In / 15.9 MM
- 1st Layer Line Speed 18 Ft/Min / 5.5 M/Min
- Hydraulic Pressure Required 2,200 PSI (152 Bar)
- Hydraulic Flow Required 30.0 GPM (114 LPM)
- Motor Size 14.9 Cu. In. (244 cc)
- Additional Motor Options Call Factory
- Clutch Type Blocked, DOW-LOK(R)
- Clutch Control Air, Manual
