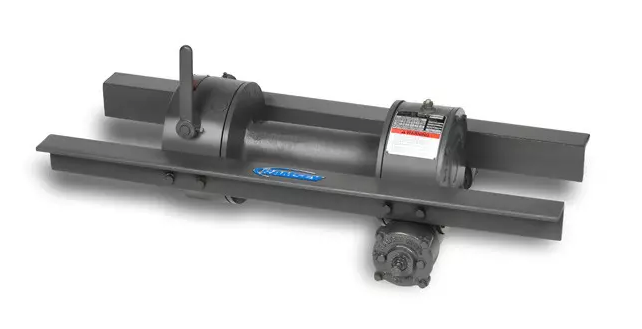

Ramsey H-49,8 Winch (H-49,8)
Hydraulic Worm Gear Winches
RMC:H-49,8
Please Call for Availability
800.877.0338
Description
- EN 14492-1 compliant
- Rated Line Pull 11,200 Lbs / 5,080.2 Kg / 49,8 Kn
- Weight w/o Cable 200 Lbs / 90.7 Kg
- Brake Yes - brake is self-locking
- Cable None
- Drum Size (L x F x B) 11.50 x 10.50 x 5.00 In / 292.1 x 266.7 x 127.0 MM
- Cable Capacity 155 Ft / 47.2 M
- Recommend Cable Size 0.472 In / 12.0 MM
- 1st Layer Line Speed 30 Ft/Min / 9.1 M/Min
- Hydraulic Pressure Required 2,300 PSI (158.6 Bar)
- Hydraulic Flow Required 25.0 GPM (94.6 LPM)
- Motor Size 6.2 Cu. In. / 101.6 cc
- Additional Motor Options Call Factory
- Clutch Type Blocked, Lever Style
- Clutch Control Manual
- Minimum Breaking Strength 99.6 kN
