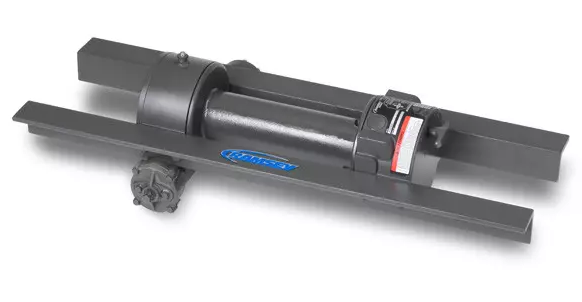

Ramsey HY-346 Winch (HY-346)
Hydraulic Worm Gear Winches
RMC:HY-346
Please Call for Availability
800.877.0338
Description
- Gear Reduction 46:01:00`
- Weight w/o Cable 105 Lbs / 48 Kg
- Brake Optional
- Cable None
- Drum Size (L x F x B) 6.31 x 7.25 x 3.50 In / 160.3 x 184.2 x 88.9 MM
- Cable Capacity 75 Ft / 22.9 M
- Recommend Cable Size 3/8 In / 9.0 MM
- 1st Layer Line Speed 16.5 Ft/Min / 5.0 M/Min
- Hydraulic Pressure Required 2,000 PSI
- Hydraulic Flow Required 15.0 GPM (57.0 LPM)
- Motor 5 Cu. In.
- Additional Motor Options Call Factory
- Clutch Type Blocked, RAM-LOK(R), DOW-LOK(R), Lever Style
- Clutch Control Air, Manual
