Rugby Light Dump Bodies (Eliminator LP)

(0) Reviews: Write first review
RGY:Eliminator LP

Please Call for Availability
800.877.0338

Description

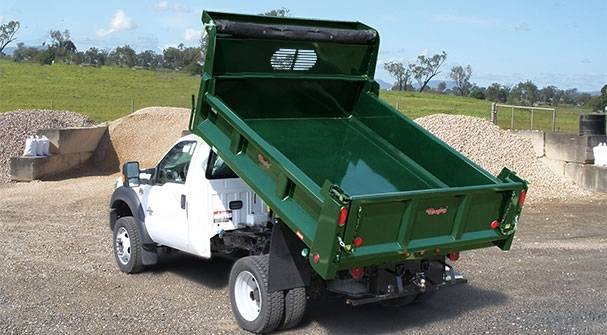

Rugby Manufacturing's Eliminator LP Dump Body is the industry leader in Class 3-5. Featuring a sleek, streamlined style and designed for maximum durability, these units are available in 9' to 12' lengths with 12 and 17" side height options. Units come equipped with a sloped 1/4 cab shield that has a slotted viewing window. The patented EZ - LATCH(TM) system is also included for easy tailgate operation and maximum safety.
  • Single-walled fold down sides with 6" vertical braces
  • Pockets for 6" side boards increase load capacity
  • Side design includes fully boxed 45? dirt shedding top rail and a 50? sloped bottom rail for a completely self-cleaning profile
  • Front body's seamless one-piece design features triple bend top rails for long-term durability
  • Stacked understructure consisting of 5" structural long members overlaid with 3" structural I-beam crossmembers spaced 16" (12" optional) apart
  • 1/4 cab shield with viewing window
  • Full height corner posts with rear surface sloped 6? aids in tailgate closing
  • Tailgate double walled panel design fabricated from 10 ga steel featuring fully boxed dirt-shedding top and bottom rails. Two vertical braces to provide additional strength and rigidity
  • Rugby products' lighting locations have been designed to assist the installer in meeting FMVSS / CMVSS 108 requirements.
  • Cab Shield Posts Full depth front pillars include easily locating cut-out for fast installation of cab shield insert. Makes all Eliminator LP cab shields interchangeable, helping to keep inventory low.
  • Fold down sides feature a centrally located quick release lever that extends and retracts 3/4" pins at each end using a solid linkage member. Weight-saving aluminum fold down sides are optional on steel bodies.

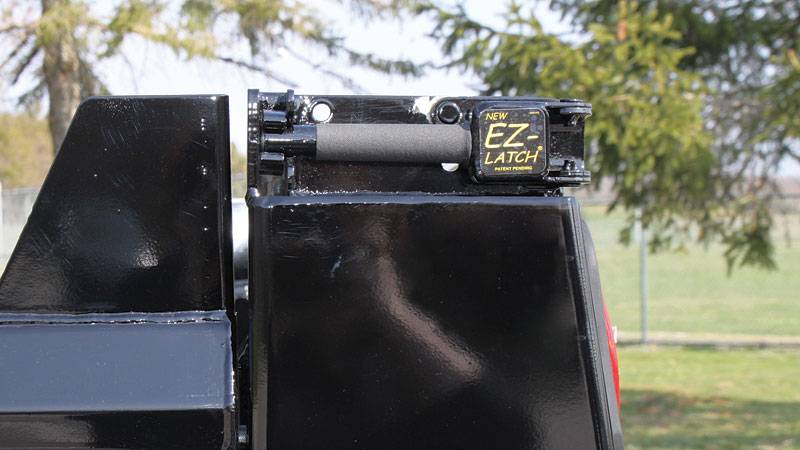

  • Rugby's patented and industry leading EZ - LATCH(TM) (located on each side of body) allows for easy body access. The latch system is designed for quick opening and slam lock operation with a cam action to draw-in upper tailgate pins.
  • Body Options: Cabshields (1/4, 1/2, 3/4, Full) Standard and Tall
  • Body Options: 7 gauge floor
  • Body Options: Cross sills on 12" centers
  • Body Options:Understructure Options: Stacked Crossmemberless

Warranty

Body Options:Understructure Options:
Stacked
Crossmemberless
